Arduino simulator

How to use it:

• start arduino software
• compile a sketch, the firmware will be saved in temporary directory
• start the arduino simulator example: `python -m pysimavrgui.examples.sim.arduino` The name of the sketch is displayed on the GUI.
• after recompiling in arduino select ‘reload’ on simulator GUI

LCD sketch

#include <LiquidCrystal.h>

LiquidCrystal lcd(12, 11, 10, 5, 4, 3, 2);

void setup() {
  lcd.begin(16, 2);
  lcd.print("hello, world!");
}

void loop() {
}

$ python -m pysimavrgui.examples.sim.arduino -c pysimavrgui/examples/arduino/lcd.pde

LED sketch

void setup() {
  // initialize the digital pin as an output.
  // Pin 13 has an LED connected on most Arduino boards:
  pinMode(13, OUTPUT);

  digitalWrite(13, HIGH);   // set the LED on
}

void loop() {
}

$ python -m pysimavrgui.examples.sim.arduino -c pysimavrgui/examples/arduino/led.pde

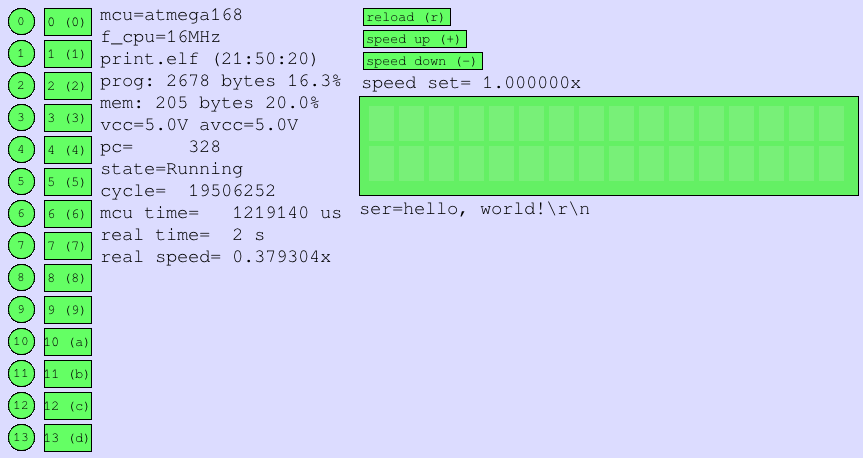

print sketch

void setup() {
    Serial.begin(9600);
    Serial.println("hello, world!");
}

void loop() {
}

$ python -m pysimavrgui.examples.sim.arduino -c pysimavrgui/examples/arduino/print.pde
